Brand Name : RanCheng
Model Number : BW160
Certification : CE, ISO 9001:2000
Place of Origin : China
MOQ : 1
Price : USD2380
Payment Terms : T/T, Western Union
Supply Ability : 100sets per Month
Delivery Time : 10-15 working days
Packaging Details : Standard shipping
Model : BW160
Flow rate : 160L/min
pressure : 1.3 mpa
Transmission power : 5.5KW
frequency of stroke : 147 times/min
Single Cylinder Piston Pump BW160H Flow Rate 160L / Min, Max Pressure: 1.3mpa Mud Pump
Machine Introduction
BW160 mud pump is one single cylinder piston pump ,with single cylinder diesel engine, First gear constant speed, flow: 160L / min, max pressure: 1.3mpa , this mud pump is mainly used for drilling projects
Technical Parameters
| Model No. | BW160 |
| Cylinder diameter | 95mm |
| Piston Stroke | 90mm |
| frequency of stroke | 147 times/min |
| Flow rate | 160 L/min |
| Pressure | 1.3 mpa |
| Power input | 5.5 kW |
| Diameter of suction pipe | 50mm |
| Diameter of discharge pipe | 40mm |
| Overall dimensions (LxWxH) | 850X600X550mm |
| Weight | 130kg |
Machine Advantages
1.This mud pump is Small volume, light weight, simple operation and easy relocation;
2.It can transport mud with sand content less than 5% or other liquids with pH value of about 7 ~ 8.
Application
Bw160 mud pump is a portable mud pump, which is mainly used to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.
Machine Pictures




|
|

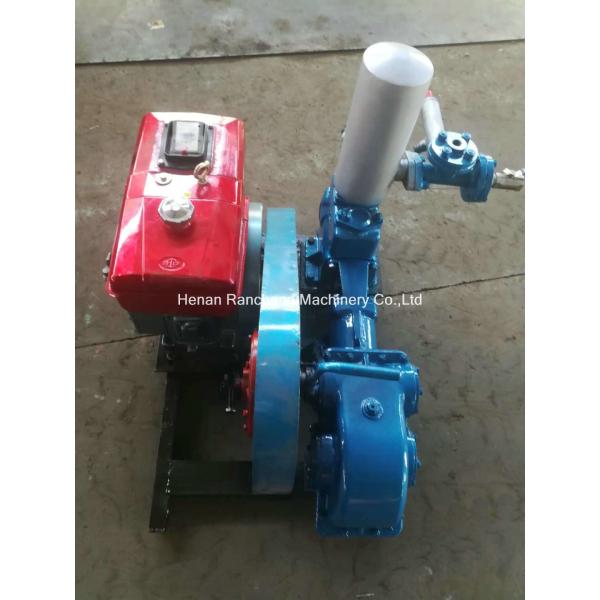

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump Images |
